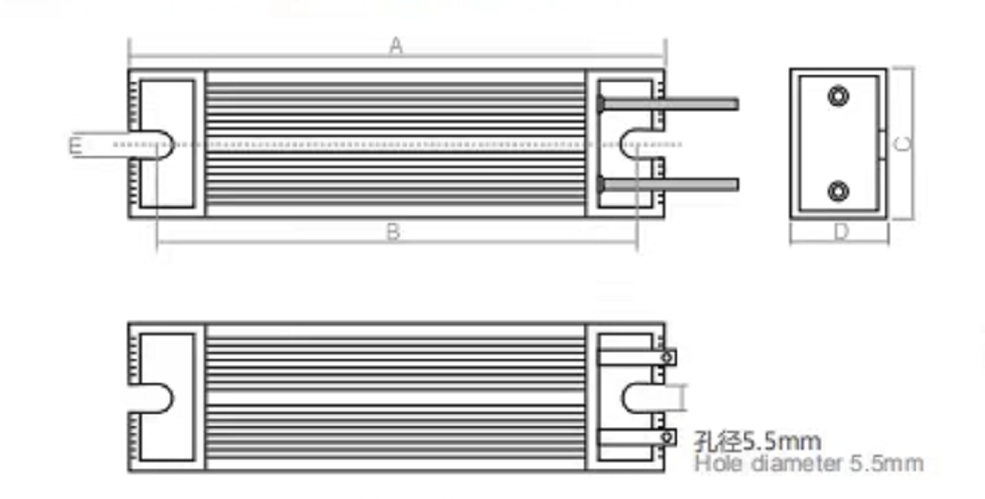

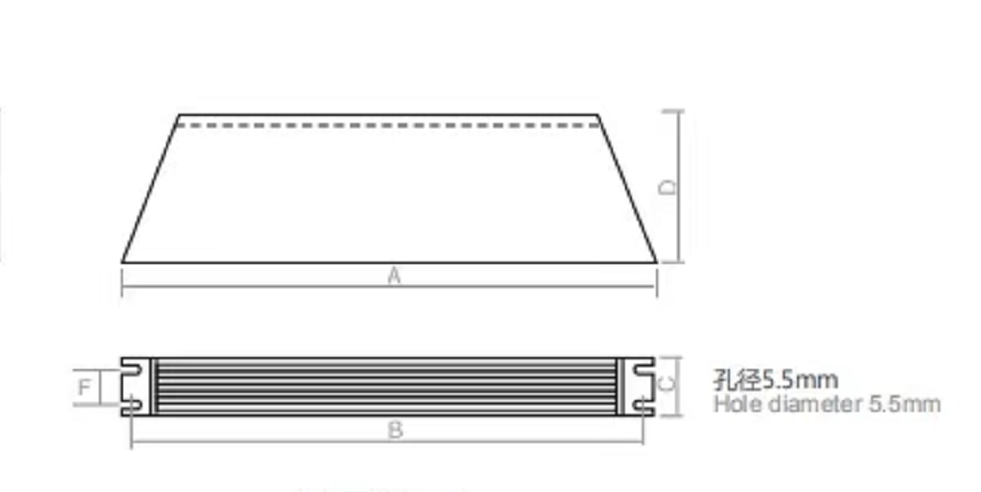

| SANO 三锘再生电阻规格型号 | 配线直径---引线长度---安装孔 | 安装尺寸(长*宽*高) |
| SANO-50-10 (50W 10Ω) | 1.5mm ---300mm ---5.5mm | 115mm*40mm*20mm |
| SANO-100-10 (100W 10Ω) | 1.5mm ---300mm ---5.5mm | 115mm*40mm*20mm |
| SANO-150-10 (150W 10Ω) | 1.5mm ---300mm ---5.5mm | 185mm*40mm*20mm |
| SANO-200-10 (200W 10Ω) | 2.0mm ---300mm ---5.5mm | 165mm*60mm*30mm |
| SANO-300-10 (300W 10Ω） | 2.0mm ---300mm ---5.5mm | 215mm*60mm*30mm |
| SANO-400-10 (400W 10Ω) | 2.0mm ---300mm ---5.5mm | 245mm*60mm*30mm |
| SANO-500-10 (500W 10Ω) | 2.0mm ---300mm ---5.5mm | 245mm*60mm*30mm |
| SANO-800-10 (800W 10Ω) | 2.0mm ---300mm ---5.5mm | 330mm*60mm*30mm |
| SANO-1000-10 (1000W 10Ω) | 2.0mm ---300mm ---5.5mm | 400mm*60mm*30mm |
| SANO-1500-10 (1500W 10Ω) | 4.0mm ---500mm ---5.5mm | 420mm*30mm*60mm |
| SANO-2000-10 (2000W 10Ω) | 4.0mm ---500mm ---5.5mm | 450mm*50mm*105mm |
| SANO-2500-10 (2500W 10Ω) | 4.0mm ---500mm ---5.5mm | 550mm*50mm*105mm |
| SANO-3000-10 (3000W 10Ω) | 4.0mm ---500mm ---5.5mm | 550mm*50mm*105mm |
| SANO-4000-10 (4000W 10Ω) | 4.0mm ---500mm ---5.5mm | 550mm*50mm*105mm |
| SANO-4500-10 (4500W 10Ω) | 4.0mm ---500mm ---5.5mm | 550mm*50mm*105mm |
| SANO-5000-10 (5000W 10Ω) | 4.0mm ---500mm ---5.5mm | 550mm*50mm*105mm |
| SANO-6000-10 (6000W 10Ω) | 4.0mm ---500mm ---5.5mm | 700mm*50mm*105mm |
|
|

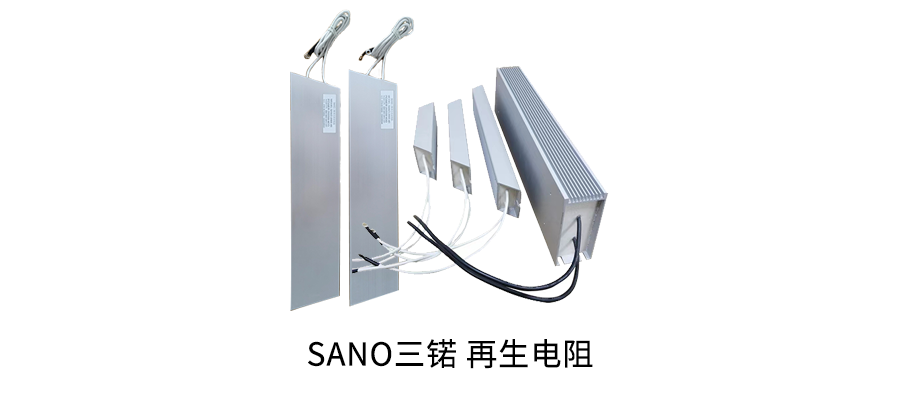

1.产品名称：再生电阻，也称制动电阻。
2.阻值范围：1Ω-10000Ω
3.电压范围：500V-2000V
4.耐压测试：AC2500V-4500V/min 50/60HZ
5.外观形式：铝壳，耐高温线引出。
6.工作环境：额定功率（-65-+68）
7.应用范围：伺服系统、变频器系统、电梯系统、电子电力系统、船舶自动化设备等用电设备。
8.参数选型均以10欧姆为例，实际可以按用户需求定制任意电阻值，例如：SANO-1000-57（1000W 57Ω）
9.选型服务热线：0755-83765658 135 9035 8544 QQ:85239725
